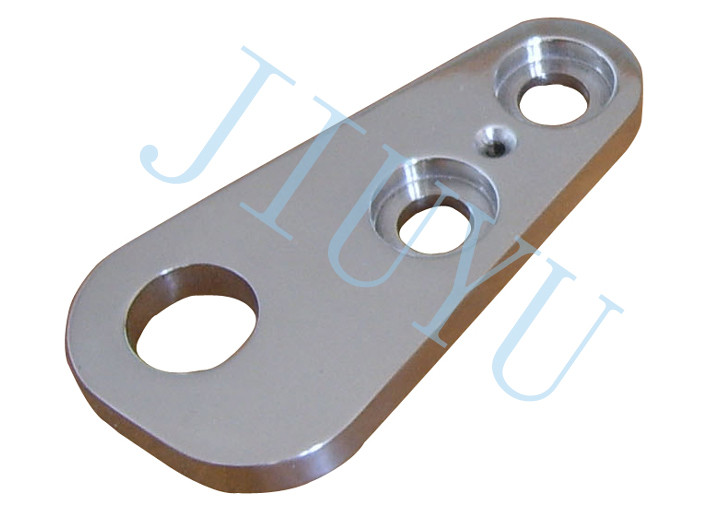

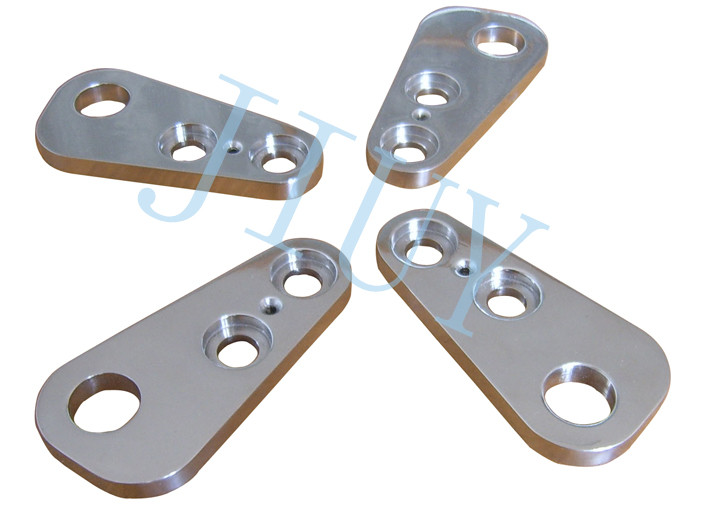

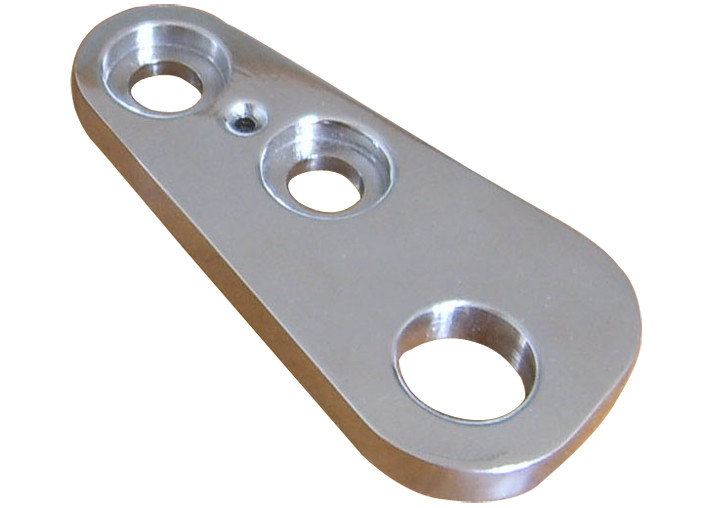

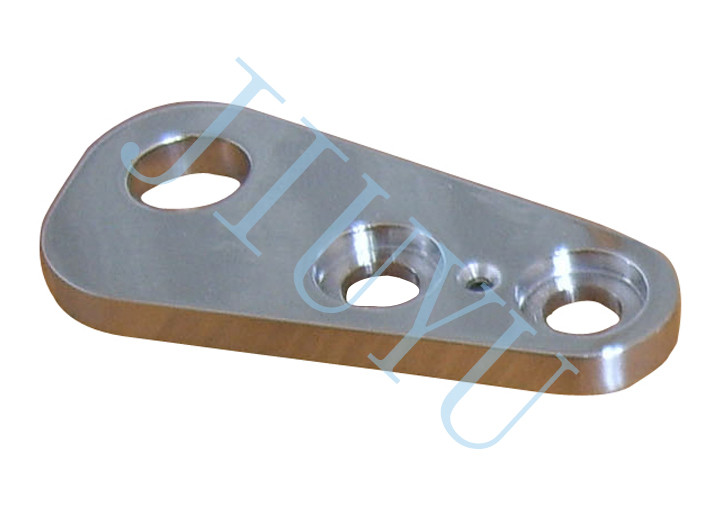

Starboard plate of 304Stainless Steel Stamping Parts 8mm in control system of Custom Metal Stamping Parts in Marine Components, boat
Starboard plate with high quality stainless steel, the thickness of material is 8mm. Eliminate the sharp edge and the traces of punching along all the perime ter by brushing and polishing. The salt spray fog resistance class. The surface is Mirror polishing.
| ITEM | DESCRIPTION |
| Material | Stainless Steel 304 |
| Thickness of Material | 8mm |
| Diameter | 104 *51.5 *8.0mm |
| Surface | Mirror Polishing |
| Packaging | 100pcs |
| Pacaging Size | 340 *330 *200mm |
| Technology | Stamping, CNC, Polishing |
| Usage | Controly ststem in boat |
Applications Of Starboard Plate:
Starboard Plate products are used for Marine Components.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu | AL | N | Mo | Ti |
| Sus304 | 0.04 | 0.56 | 1.14 | 0.026 | 0.001 | 18.19 | 8.00 | |||||
| Sus304 | 0.04 | 0.39 | 1.10 | 0.006 | 0.001 | 18.14 | 8.00 | |||||
| Sus304 | 0.05 | 0.42 | 1.13 | 0.004 | ＜0.001 | 18.06 | 8.01 | |||||
| 316L | 0.020 | 0.50 | 1.16 | 0.035 | 0.001 | 16.55 | 10.00 | 0.0578 | 0.04 | 2.09 |
